Detalhes do produto
Place of Origin: CHINA
Marca: XINYUN
Certificação: CE
Model Number: XY-503IZ
Termos do pagamento & do transporte
Minimum Order Quantity: 1 set
Preço: 33800 USD per set
Packaging Details: Standard export wooden pallet
Delivery Time: 30-40 days
Payment Terms: T/T
Supply Ability: 500 sets per year
Condition: |
New |
After-sales service provided: |
Engineers available to service machinery overseas,Video technical support,Field installation,Online support |
Voltage: |
380 V 50 Hz |
Weight: |
2000kg |
Warranty: |
1 Year |
Product type: |
Toilet Roll Packing Machine |
Processing type: |
Packing machine |
Type: |
Sealing Machine |
Automatic grade: |
Automatic |
Packaging material: |
CPP |
Power: |
15.5kw |
Condition: |
New |
After-sales service provided: |
Engineers available to service machinery overseas,Video technical support,Field installation,Online support |
Voltage: |
380 V 50 Hz |
Weight: |
2000kg |
Warranty: |
1 Year |
Product type: |
Toilet Roll Packing Machine |
Processing type: |
Packing machine |
Type: |
Sealing Machine |
Automatic grade: |
Automatic |
Packaging material: |
CPP |
Power: |
15.5kw |

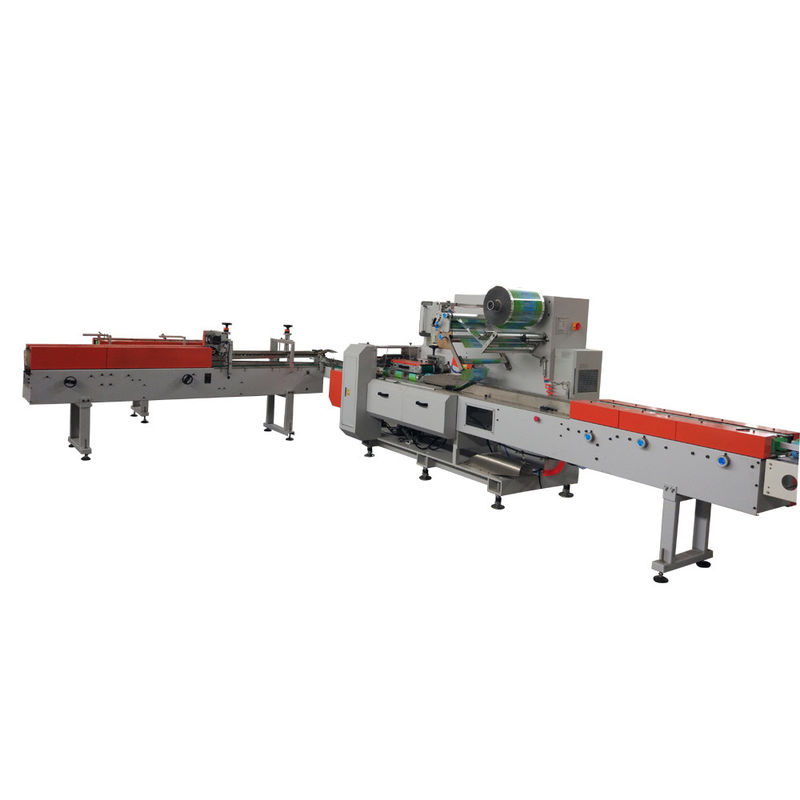

Factory price SPP film individual toilet tissue small paper roll / single kitchen towel packing machine
Product Description:
1. Multi function: Servo controlling, automatic conveying, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
3. Packing and sealing are pretty and tidy. The machine operated with full-automation. The machine with conveyer can be connected with other machines to form a whole packing line. This allows machine have high capacity and therefore to save the labor and reduce production cost.
4. Easy to maintain, low noise.
5. Touch screen controlling, parameter adjusted in touch screen easily, such as speed, roll size, film size.
6. Electric eyes detecting, stop automatically when failure occur.
7. Independent temperature control.
8. Capacity: 80~180 pack/min
9. Suitable for both core and coreless toilet roll.
10. Comprehensive design, rigid frame, famous brand major components, this allows our machine work steadily & efficiently, and therefore this makes machine have long life.
11. Can be connected with log saw machine and roll multi pack machine to form an automatic processing line.
toilet roll packing machine,toilet tissue paper packing machine,single kitchen towel packing machine,kitchen towel packing machine,small paper roll packing machine
Model | XY-503IZ |
Speed | 80-180 rolls/min. |
Power | 7.5Kw 220V 50HZ |
Machine weight | 1500kg |
Machine size | 7000*1100*1700mm |
Packing size | Diameter:Φ90-120mm,Height:95-200mm |
Packing film material |
SPP film 1.Film thickness:0.018mm ~0.035 mm 2.Film roller maximum diameter:Φ380mm 3.Film roller inner diameter:Φ75mm~78mm 4. Film maximum width:430 mm |
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
